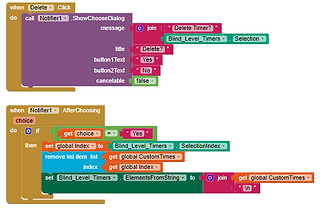

The manual mode is completed for the phone app and was tested to demonstrate the user saved timers/ user able to delete any previous timers made [11] [14]. Each new timer added in custom mode is sorted in ascending order according to start of each timer [15] [16] [17]. The current time format was fixed in order to send 00:00:00 (hh:mm:ss) to MCU without missing values (ex. previously 1:30:0, now 01:30:00) [12]. The same issue for each timer was addressed as well.
The flowchart for Arduino program has been updated from previous one, below are the handwritten version of the charts.
The flowcharts have been corrected and drawing.io was used to create clean charts.
